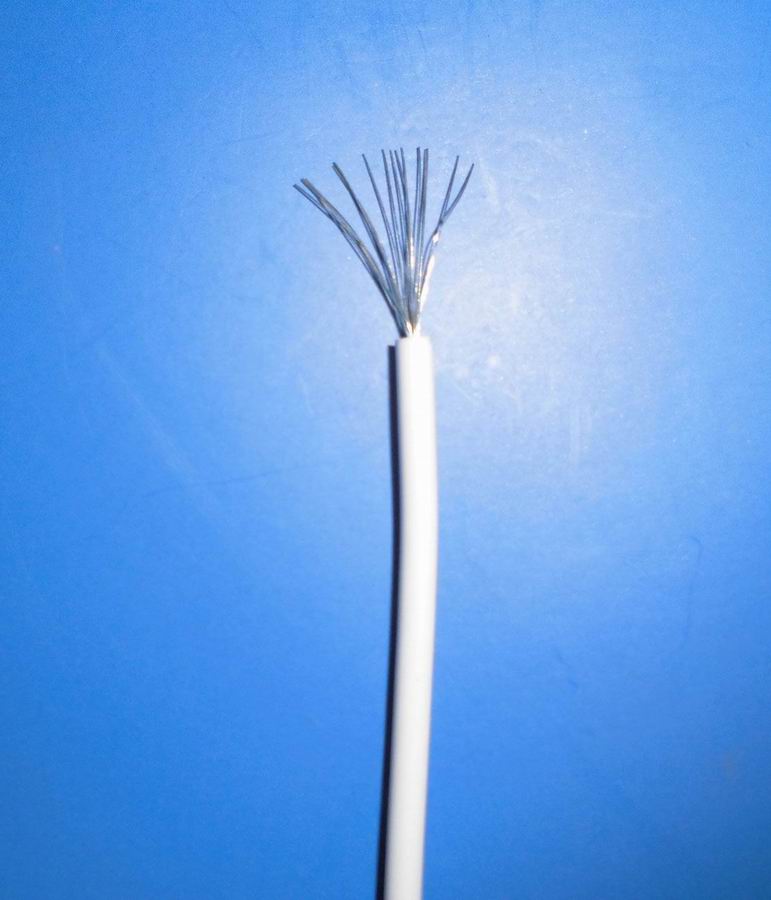

CAVS Compress Conductor Thin Wall Low-voltage Wires for Automobiles
JASO D 611 Series					Application
● Rated Temperature: 80℃					For internal wiring of vehicles metres circuits
● Rated Voltage：25 VAC and 60 VDC					and electronic equipments where exposed to
● Reference Standard: JASO D 611、ISO6722					temperatures not exceeding 80℃
● Stranded Bare Copper Conductor
● PVC Insulation
● No Marking

No.	Conductor			Insulation		Over Diamter		Maximun Resistance at 20℃ Ω/Km	Packing

	mmsq	No./mm	Out.Dia. mm	Std.Thick mm	Min.Thick mm	Standard mm	Max mm

1	0.3	7/0.26	0.7	0.35	0.28	1.4	1.5	50.2	Optional
2	0.5	7/0.32	.9	0.35	0.28	1.6	1.7	32.7	Optional
3	0.85	19/0.24	1.1	0.35	0.28	1.8	1.9	21.7	Optional
4	1.25	16/0.32	1.4	0.35	0.28	2.1	2.2	14.9	Optional
