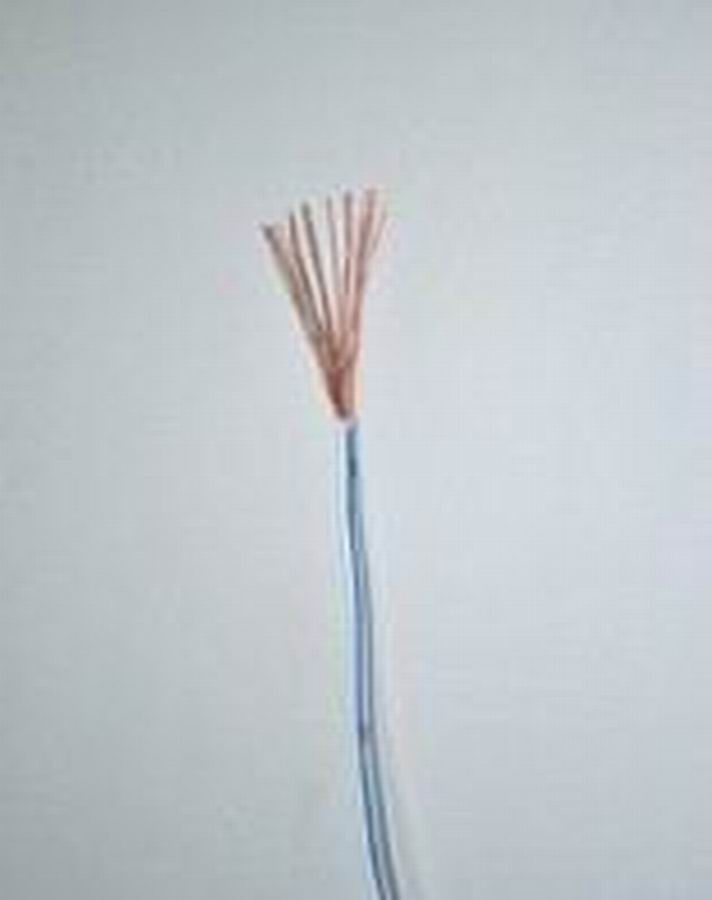

GXL General Purpose Cross(X) Linked Polyolefin Insulated Wires
SAE-J1128 Series					Application
● Rated Temperature: 125℃					For internal wiring of vehicles metres circuits
● Rated Voltage：25 VAC and 60 VDC					and electronic equipments where exposed to
● Reference Standard: SAE-J1128、ISO6722					temperatures not exceeding 125℃
● Stranded Tinned or Bare Copper Conductor
● XLPE Insulation
● No Marking

Style	Conductor			Insulation		Over Diamter	Withstand Voltage KV	Packing

	AWG	MMSQ	No./mm	Std.Thick mm	Min.Thick mm	Max mm

GXL	20	0.5	7/0.32	0.58	0.41	2.4	1KV/Min	Optional
	18	0.8	19/0.23	0.58	0.41	2.5		Optional
	16	1	19/0.28	0.58	0.41	2.9		Optional
	14	2	41/0.254	0.58	0.41	3.2		Optional
	12	3	65/0.254	0.66	0.46	3.8		Optional
	10	5	105/0.254	0.79	0.55	4.7		Optional
	8	8	168/0.254	0.94	0.66	6		Optional
