TWP Thin Wall Thermoplastic Insulated Wires

更新：2016/10/18 14:00:20 点击：1470

产品介绍

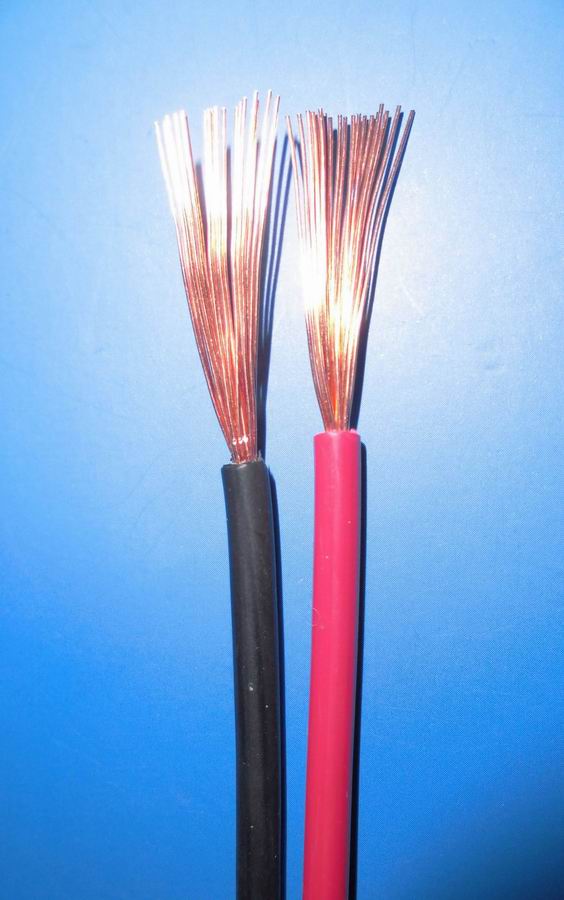

TWP Thin Wall Thermoplastic Insulated Wires
SAE-J1128 Series					Application
● Rated Temperature: 80℃					For internal wiring of vehicles metres circuits
● Rated Voltage：25 VAC and 60 VDC					and electronic equipments where exposed to
● Reference Standard: SAE-J1128、ISO6722					temperatures not exceeding 80℃
● Stranded Bare Copper Conductor
● PVC Insulation
● No Marking

Style	Conductor			Insulation		Over Diamter	Withstand Voltage KV	Packing

	AWG	MMSQ	No./mm	Std.Thick mm	Min.Thick mm	Max mm

TWP	24	0.22	7/0.19	0.4	0.28	1.5	1KV/Min	Optional
	22	0.35	7/0.25	0.4	0.28	1.7		Optional
	20	0.5	7/0.32	0.4	0.28	1.9		Optional
	18	0.8	19/0.23	0.4	0.28	2.2		Optional
	16	1	19/0.28	0.4	0.28	2.4		Optional
	14	2	19/0.35	0.4	0.28	2.7		Optional
	12	3	19/0.45	0.45	0.32	3.3		Optional
	10	5	65/0.32	0.5	0.35	4		Optional
	8	8	50/0.45	0.55	0.39	4.9		Optional
