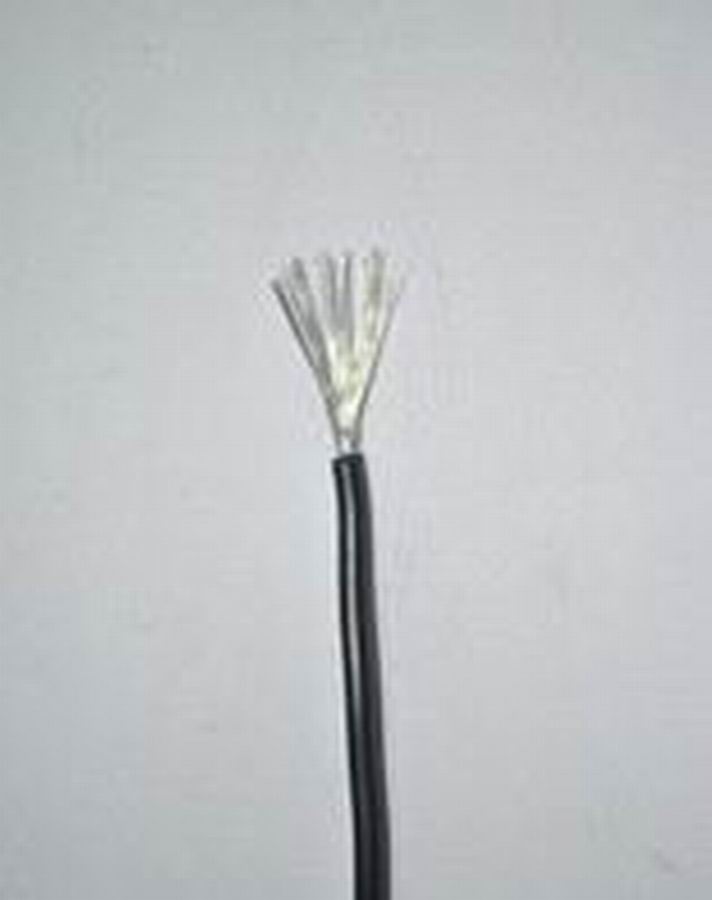

AVSSH Extremely Thin Wall Low-Voltage Wire for Automobiles
更新：2016/10/18 13:44:22 点击：1620
- 产品型号 AVSSH
- 产品描述
AVSSH Extremely Thin Wall Low-Voltage Wire for Automobiles
产品介绍
| AVSSH Extremely Thin Wall Low-Voltage Wire for Automobiles | |||||||||
| JASO D 611 Series | Application | ||||||||
| ● Rated Temperature: 100℃ | For internal wiring of vehicles metres circuits | ||||||||
| ● Rated Voltage：25 VAC and 60 VDC | and electronic equipments where exposed to | ||||||||
| ● Reference Standard: JASO D 611、ISO6722 | temperatures not exceeding 100℃ | ||||||||
| ● Stranded Bare Copper Conductor | |||||||||
| ● PVC Insulation | |||||||||
| ● No Marking | |||||||||
| No. | Conductor | Insulation | Over Diamter |
Maximun Resistance at 20℃ Ω/Km |
Packing | ||||
| mmsq | No./mm |
Out.Dia. mm |
Std.Thick mm |
Min.Thick mm |
Standard mm |
Max mm |
|||
| AVSSH1 | 0.3f | 19/0.16 | 0.8 | 0.3 | 0.24 | 1.4 | 1.5 | 48.8 | 500-1000 |
| AVSSH2 | 0.5f | 19/0.19 | 1.0 | 0.3 | 0.24 | 1.6 | 1.7 | 34.6 | 500-1000 |
| AVSSH3 | 0.75f | 19/0.23 | 1.2 | 0.3 | 0.24 | 1.8 | 1.9 | 23.6 | 500-1000 |
| AVSSH4 | 1.25f | 37/0.21 | 1.5 | 0.3 | 0.24 | 2.1 | 2.2 | 14.6 | 500-1000 |
