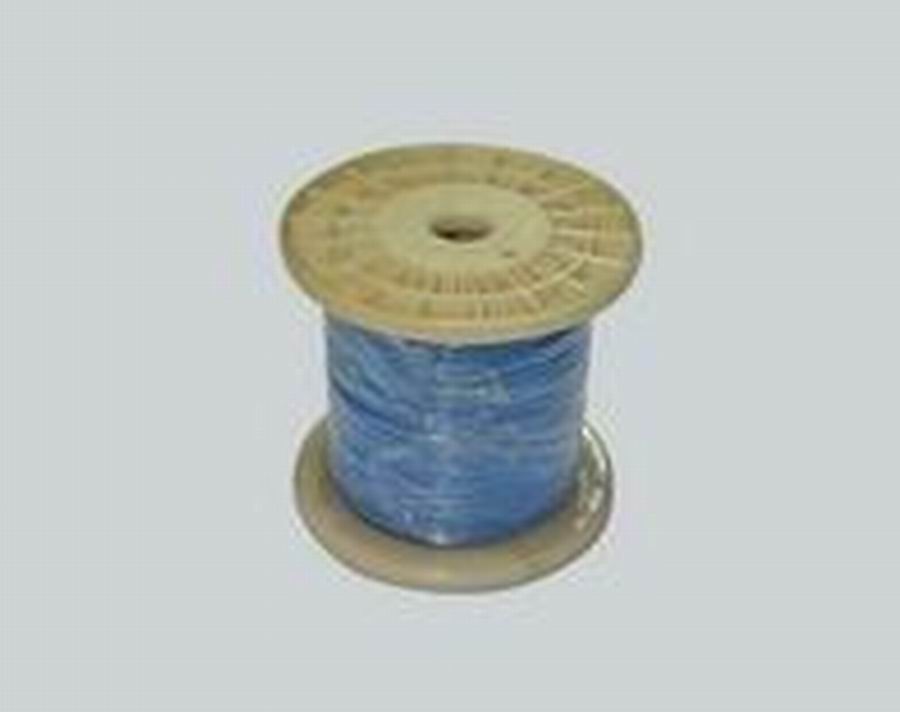

AVSSB-F Extremely Thin Wall Low-Voltage Wire for Automobiles
更新：2016/10/18 13:43:00 点击：1439
- 产品型号 AVSSB-F
- 产品描述
AVSSB-F Extremely Thin Wall Low-Voltage Wire for Automobiles
产品介绍
| AVSSB-F Extremely Thin Wall Low-Voltage Wire for Automobiles | |||||||||
| JASO D 611 Series | Application | ||||||||
| ● Rated Temperature: 80℃ | For internal wiring of vehicles metres circuits | ||||||||
| ● Rated Voltage：25 VAC and 60 VDC | and electronic equipments where exposed to | ||||||||
| ● Reference Standard: JASO D 611、ISO6722 | temperatures not exceeding 80℃ | ||||||||
| ● Stranded Tinned/Bare Copper Conductor | |||||||||
| ● PVC Insulation | |||||||||
| ● No Marking | |||||||||
| No. | Conductor | Insulation | Over Diamter |
Maximun Resistance at 20℃ Ω/Km |
Packing | ||||
| mmsq | No./mm |
Out.Dia. mm |
Std.Thick mm |
Min.Thick mm |
Standard mm |
Max mm |
|||
| AVSSB | 0.3f | 15/0.18 | 0.8 | 0.35 | 0.28 | 1.5 | 1.7 | 48.9 | 500-1000 |
| AVSSB | 0.5f | 20/0.18 | 1.0 | 0.35 | 0.28 | 1.7 | 1.8 | 36.7 | 500-1000 |
| AVSSB | 0.75f | 30/0.18 | 1.2 | 0.35 | 0.28 | 1.9 | 2.0 | 24.4 | 500-1000 |
| AVSSB | 1.25f | 50/0.18 | 1.5 | 0.4 | 0.32 | 2.3 | 2.4 | 14.7 | 500-1000 |
