AVS Thin Wall Low-Voltage Wires for Automobiles

更新：2016/10/18 13:40:38 点击：1136

产品介绍

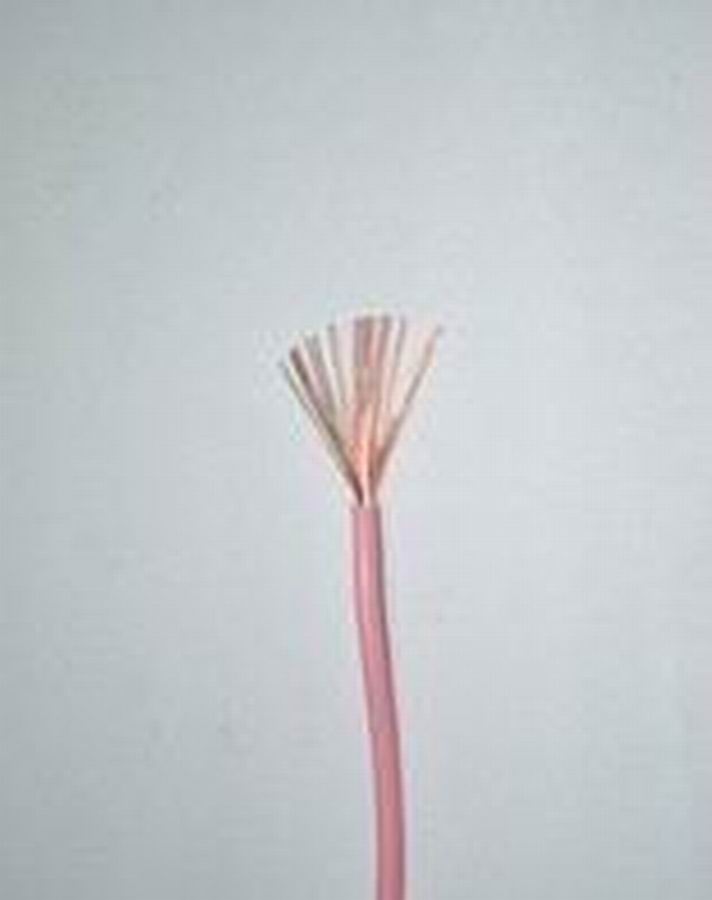

AVS Thin Wall Low-Voltage Wires for Automobiles
					Bare Copper Conductor


		Insulation thickness
		Overall diameter				PVC Insulation
JASO D 611 Series					Application
● Rated Temperature: 80℃					For internal wiring of vehicles metres circuits
● Rated Voltage：25 VAC and 60 VDC					and electronic equipments where exposed to
● Reference Standard: JASO D 611、ISO6722					temperatures not exceeding 80℃
● Stranded Bare Copper Conductor
●PVC Insulation
● No marking

No.	Conductor			Insulation		Over Diamter		Maximun Resistance at 20℃ Ω/Km	Packing
	Conductor			Insulation		Over Diamter
	mmsq	No./mm	Out.Dia. mm	Std.Thick mm	Min.Thick mm	Standard mm	Max mm
	mmsq	No./mm	Out.Dia. mm	Std.Thick mm	Min.Thick mm	Standard mm	Max mm
1	0.3	7/0.26	0.78	0.5	0.32	1.8	1.9	50.2	Optional
2	0.3f	15/0.18	0.8	0.5	0.32	1.8	1.9	48.9	Optional
3	0.5	7/0.32	0.96	0.5	0.32	2.0	2.1	32.7	Optional
4	0.5f	20/0.18	0.93	0.5	0.32	2.0	2.1	36.7	Optional
5	0.75f	30/0.18	1.14	0.5	0.32	2.2	2.3	24.4	Optional
6	0.85	16/0.26	1.2	0.5	0.32	2.2	2.3	22	Optional
6	0.85	11/0.32	1.2	0.5	0.32	2.2	2.3	20.8	Optional
7	1.25f	50/0.18	1.5	0.5	0.32	2.5	2.6	14.7	Optional
8	1.25	16/0.32	1.5	0.5	0.32	2.5	2.6	14.3	Optional
9	2.0	26/0.32	1.9	0.5	0.32	2.9	3.1	8.81	Optional
10	2f	37/0.26	1.8	0.5	0.32	2.9	3.1	9.5	Optional
11	3.0	41/0.32	2.4	0.6	0.4	3.6	3.8	3.297	Optional
12	3f	58/0.26	2.3	0.6	0.4	3.5	3.7	6.06	Optional
12	3f	61/0.26	2.4	0.6	0.4	3.5	3.7	5.76	Optional
13	5.0	65/0.32	3.0	0.7	0.48	4.4	4.6	3.52	Optional
14	5f	7/30/0.18	3.4	0.7	0.48	4.8	5.1	3.56	Optional
15	8.0	50/0.45	3.7	0.8	0.64	5.3	5.6	2.32	Optional
16	8f	7/22/0.26	4.2	0.8	0.64	5.6	5.9	2.33	Optional
