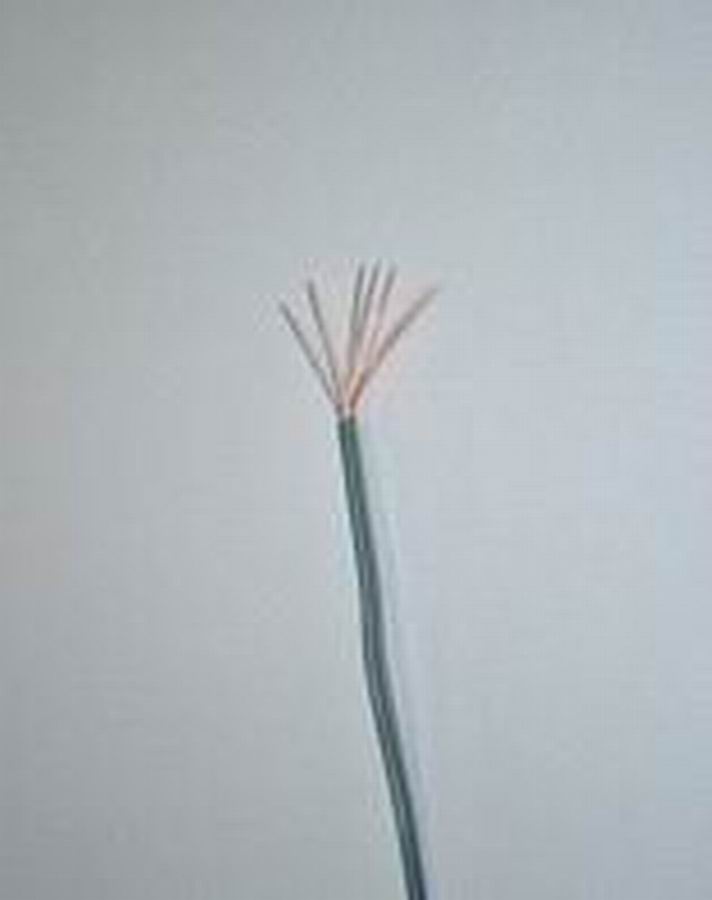

FLR5Y Thin Wall Low-voltage Wires for Automobiles
更新：2016/10/18 11:34:10 点击：1272
- 产品型号 FLR5Y
- 产品描述
FLR5Y Thin Wall Low-voltage Wires for Automobiles
产品介绍
| FLR5Y Thin Wall Low-voltage Wires for Automobiles | |||||||||
| DIN 72551 Series | Application | ||||||||
| ● Rated Temperature: 250℃ | For internal wiring of vehicles metres circuits | ||||||||
| ● Rated Voltage：25 VAC and 60 VDC | and electronic equipments where exposed to | ||||||||
| ● Reference Standard:DN 72551、ISO6722 | temperatures not exceeding 250℃ | ||||||||
| ● Stranded Nickel /Siliver Copper Conductor | |||||||||
| ● PTFE Insulation | |||||||||
| ●Flame resistance: DIN 72551.5-1996 | |||||||||
| ●Auto wire No marking. | |||||||||
| STYLE | Conductor | Insulation | Over Diamter |
Maximun Resistance at 20℃ Ω/Km |
|||||
| mmsq | No./mm |
Out.Dia. mm |
Std.Thick mm |
Min.Thick mm |
Min mm |
Max mm |
|||
| Siliver | Nichkel | ||||||||
| FLR5Y | 0.22 | 7/0.20 | 0.7 | / | 0.2 | 1.1 | 1.2 | 84.8 | 87.9 |
| 0.35 | 7/0.26 | 0.8 | / | 0.2 | 1.2 | 1.3 | 52.0 | 56.8 | |
| 0.5 | 19/0.19 | 1.0 | / | 0.22 | 1.4 | 1.6 | 37.1 | 38.6 | |
| 0.75 | 19/0.23 | 1.2 | / | 0.24 | 1.7 | 1.9 | 24.1 | 25.7 | |
| 1.0 | 19/0.26 | 1.35 | / | 0.24 | 1.9 | 2.1 | 18.5 | 19.3 | |
| 1.5 | 19/0.32 | 1.7 | / | 0.24 | 2.2 | 2.4 | 12.7 | 13.2 | |
| 2.5 | 19/0.41 | 2.2 | / | 0.28 | 2.7 | 3.0 | 7.6 | 7.9 | |
