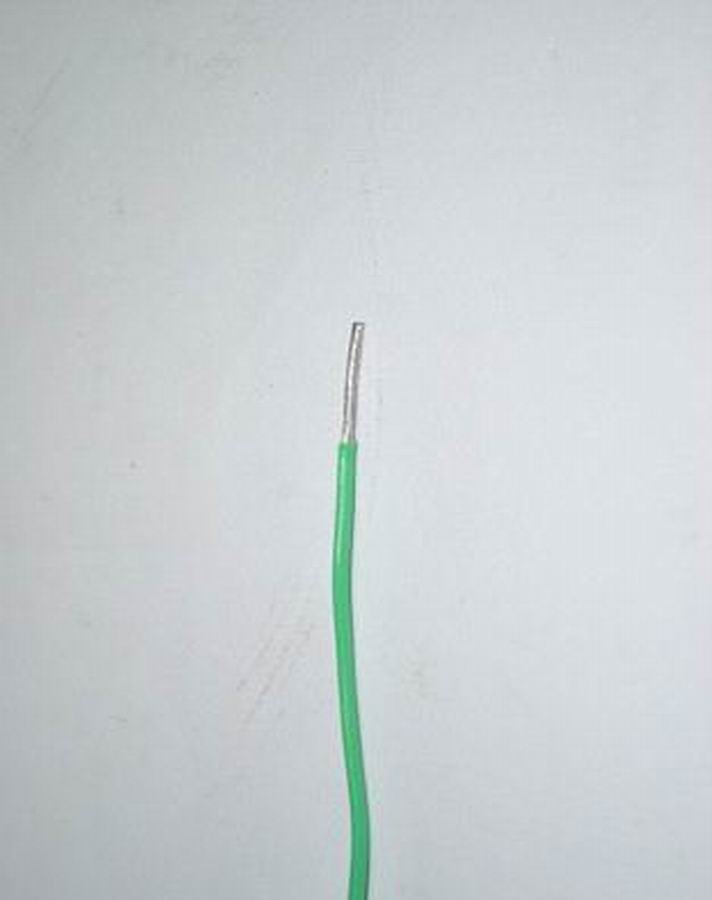

QVR Low-voltage Wires for Automobiles
更新：2016/10/18 11:29:19 点击：1680
- 产品型号 QVR Wire
- 产品描述
QVR Low-voltage Wires for Automobiles
产品介绍
| QVR Low-voltage Wires for Automobiles | |||||||||
| PRODUCT DESCRIPTION | Application | ||||||||
| ● Rated Temperature: 70℃ | For internal wiring of vehicles metres circuits | ||||||||
| ● Rated Voltage：25 VAC and 60 VDC | and electronic equipments where exposed to | ||||||||
| ● Reference Standard:JB/T 8139-1999 | temperatures not exceeding 70℃ | ||||||||
| ● Stranded Bare Copper Conductor | |||||||||
| ● PVC Insulation | |||||||||
| ● Flame resistance: JB/T8139-1999 | |||||||||
| ● No Marking | |||||||||
| STYLE | Conductor | Insulation | Finish OD |
Maximun Resistance at 20℃ Ω/Km |
Withstand voltage KV |
Packing | |||
| mmsq | No./mm |
Out.Dia. mm |
Std.Thick mm |
Min.Thick mm |
Max mm |
||||
| QVR | 0.2 | 12/0.15 | 0.6 | 0.3 | 0.17 | 1.3 | 92.3 | 1KV 30MIN | Optional |
| 0.3 | 16/0.15 | 0.7 | 0.3 | 0.17 | 1.4 | 69.2 | Optional | ||
| 0.4 | 23/0.15 | 0.8 | 0.3 | 0.17 | 1.4 | 48.2 | Optional | ||
| 0.5 | 16/0.20 | 0.9 | 0.6 | 0.44 | 2.4 | 39 | Optional | ||
| 0.75 | 24/0.20 | 1.2 | 0.6 | 0.44 | 2.6 | 26 | Optional | ||
| 1 | 32/0.20 | 1.35 | 0.6 | 0.44 | 2.8 | 19.5 | Optional | ||
| 1.5 | 30/0.25 | 1.7 | 0.6 | 0.44 | 3.1 | 13.3 | Optional | ||
| 2.5 | 50/0.25 | 2.2 | 0.7 | 0.53 | 3.7 | 7.98 | Optional | ||
| 4 | 56/0.30 | 2.8 | 0.8 | 0.62 | 4.5 | 4.95 | Optional | ||
| 6 | 84/0.30 | 3.30 | 0.8 | 0.62 | 5.1 | 3.3 | Optional | ||
| 10 | 84/0.40 | 4.50 | 1.0 | 0.8 | 6.7 | 1.91 | Optional | ||
| 16 | 126/0.40 | 6.3 | 1.0 | 0.8 | 8.5 | 1.21 | Optional | ||
| 25 | 196/0.40 | 7.6 | 1.3 | 1.07 | 10.6 | 0.78 | Optional | ||
| 35 | 276/0.40 | 9.2 | 1.3 | 1.07 | 11.8 | 0.554 | Optional | ||
| 50 | 396/0.40 | 11.0 | 1.5 | 1.25 | 13.7 | 0.386 | Optional | ||
| 70 | 560/0.40 | 13.1 | 1.5 | 1.25 | 15.7 | 0.272 | Optional | ||
