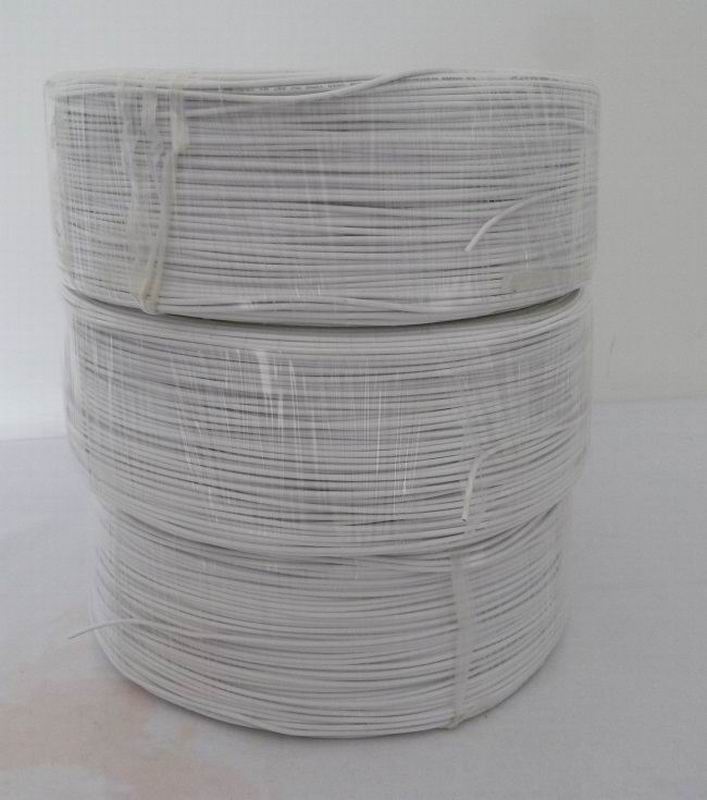

QB-B Thin Wall Low Voltage Wires for Automobiles
更新：2016/10/18 11:12:30 点击：2644
- 产品型号 QB-B
- 产品描述
QB-B Thin Wall Low Voltage Wires for Automobiles
产品介绍
| QB-B Thin Wall Low Voltage Wires for Automobiles | |||||||||
| CQC Automobile Series | Application | ||||||||
| ● Rated Temperature: 105℃ | For internal wiring of vehicles metres circuits | ||||||||
| ● Rated Voltage：25 VAC and 60 VDC | and electronic equipments where exposed to | ||||||||
| ● Reference Standard: QC/T 730、ISO6722 | temperatures not exceeding 105℃ | ||||||||
| ● Stranded Bare Copper Conductor | |||||||||
| ● PVC Insulation | |||||||||
| ● Flame resistance:QC/T 730-2005 | |||||||||
| ● No Marking. | |||||||||
| No. | Conductor | Insulation | Over Diamter |
Maximun Resistance at 20℃ Ω/Km |
Withstand Voltage KV |
Packing | |||
| mmsq | No./mm |
Out.Dia. mm |
Std.Thick mm |
Min.Thick mm |
Max mm |
||||
| 1 | 0.13 | 7/0.15 | 0.5 | 0.25 | 0.2 | 1.05 | 136 | 1KV 30Min | Optional |
| 2 | 0.22 | 7/0.20 | 0.6 | 0.25 | 0.2 | 1.2 | 84.4 | Optional | |
| 3 | 0.35 | 12/0.20 | 0.9 | 0.25 | 0.2 | 1.4 | 55.5 | Optional | |
| 4 | 0.5 | 16/0.20 | 1.0 | 0.28 | 0.22 | 1.7 | 37.1 | Optional | |
| 5 | 0.75 | 24/0.20 | 1.2 | 0.30 | 0.24 | 1.9 | 24.7 | Optional | |
| 6 | 1 | 32/0.20 | 1.35 | 0.30 | 0.24 | 2.1 | 18.5 | Optional | |
| 7 | 1.5 | 30/0.25 | 1.7 | 0.30 | 0.24 | 2.4 | 12.7 | Optional | |
| 8 | 2 | 60/0.20 | 2.0 | 0.35 | 0.28 | 2.8 | 9.42 | Optional | |
| 9 | 2.5 | 50/0.25 | 2.2 | 0.35 | 0.28 | 3 | 7.6 | Optional | |
| 10 | 3 | 65/0.25 | 2.4 | 0.40 | 0.32 | 3.4 | 6.15 | Optional | |
| 11 | 4 | 56/0.30 | 2.8 | 0.40 | 0.32 | 3.8 | 4.7 | Optional | |
| 12 | 5 | 70/0.30 | 3.1 | 0.40 | 0.32 | 4.2 | 3.94 | Optional | |
| 13 | 6 | 84/0.30 | 3.3 | 0.40 | 0.32 | 4.3 | 3.14 | Optional | |
| 14 | 10 | 80/0.40 | 4.5 | 0.60 | 0.48 | 6 | 1.82 | Optional | |
| 15 | 16 | 126/0.40 | 6.3 | 0.65 | 0.52 | 7.9 | 1.16 | Optional | |
| 16 | 25 | 196/0.40 | 7.8 | 0.65 | 0.52 | 9.4 | 0.743 | Optional | |
