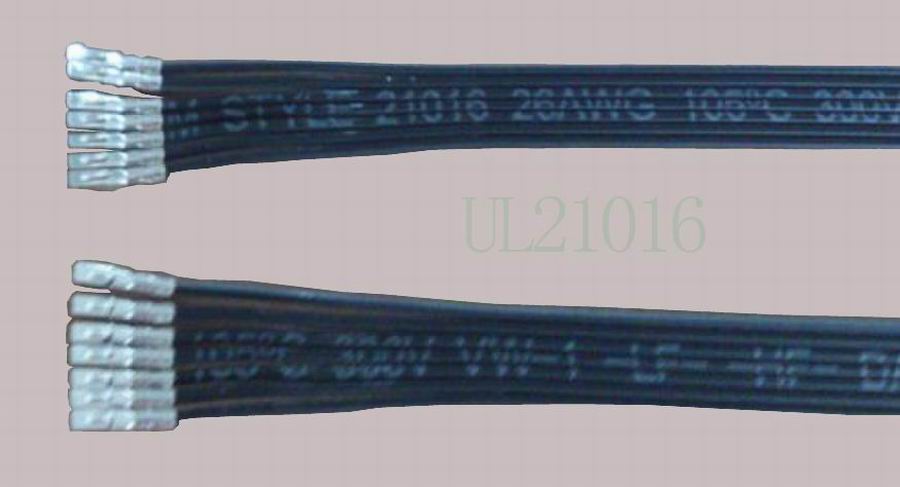

UL Style 21016 AWG26 XLPE Flat Cable

更新：2016/10/18 11:41:25 点击：2168

产品介绍

UL Style 21016 XLPE Flat Cable

● Tinned ,annealed,stranded or solid copper conductor，Top-coated.
● Insulation:XLPE
● Rated Temperature:105℃
● Rated voltage:300 Volts Passed UL & CUL，horizontal flame test.
● Applications: Internal wiring of appliances.

UL Style CUL Type	Conductor		Pitch	Cores	Insulation Thickness	Overall Diameter	Conductor Resistance at 20℃
	Conductor		Pitch	Cores	Insulation Thickness	Overall Diameter	Conductor Resistance at 20℃
	AWG	No./MM	MM	NO.	MM	MM	Ω/KM
UL21016 CUL AWM I/A	26	7/0.16	2.54	2P-40P	0.23	1.05	150
UL21016 CUL AWM I/A	26	7/0.16	2	2P-50P	0.23	1.05	150
