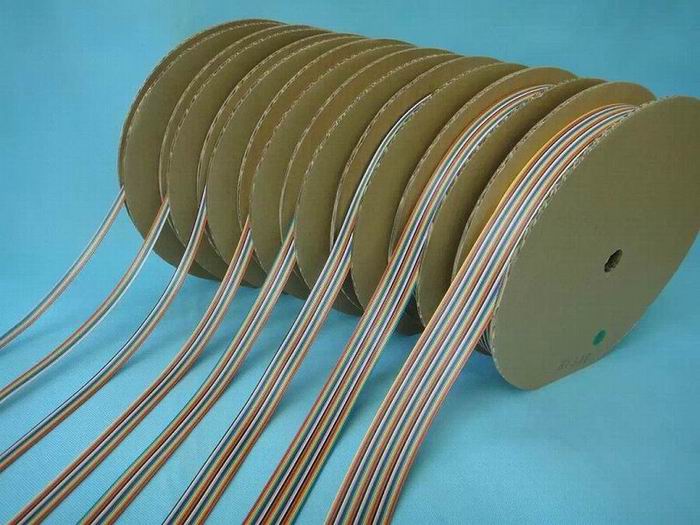

UL 2678 AWG30 Flat Ribbon Cable

更新：2016/10/17 23:36:00 点击：2137

产品介绍

UL 2678 AWG30 Flat Ribbon Cable
● Conductor:Bare Copper		● Flame resistance: VW-1 or FT1
● Insulation: PVC		● Standard:UL758, UL1581 C22.2
● Operating Temperature:105℃		● RoHS Compliant
● Rated Voltage：150V
APPLICATION: INTERNAL WIRING OF APPLIANCES AND ELECTRONIC EQUIPMENT

CABLE DATA
CONDUCTOR	SIZE:AWG30
	TINNED COPPER 7/0.1±0.008MM
	RESISTANCE AT 20℃ MAX. 337.00Ω/KM
INSULATION	MATERIAL:PVC INSULATION
	INSULATIONTHICKNESS:NOM:0.18MM,MIN.0.15MM
	OVER DIAMETER:0.66±0.08MM
	RATED:105 ℃ 150V
	RESISTANCE AT 20℃ MIN. 100MΩ/KM
	COLOR:GREY WITH RED SIZE
	2-80P
