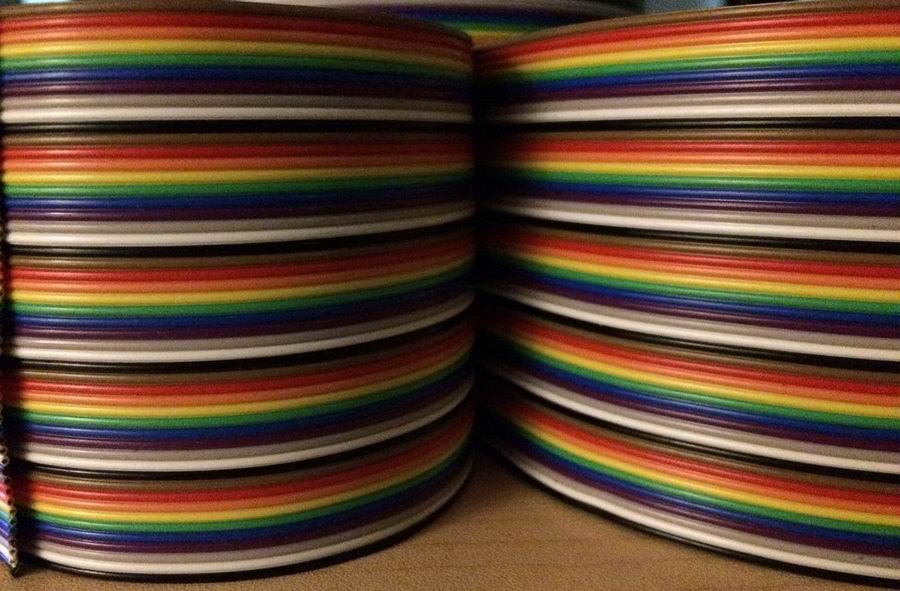

UL2651 AWG28 TS7/0.12 PVC INSULATED 105C 300V FLAT CABLE PITCH=1.27

更新：2016/10/18 11:56:10 点击：1646

产品介绍

UL2651 AWG28 TS7/0.12 PVC INSULATED 105C 300V HOOK UP WIRE
● Conductor:Tinned Plated Copper		● Flame resistance: VW-1 or FT1
● Insulation: PVC		● Standard:UL758, UL1581 C22.2
● Operating Temperature:105℃		● RoHs Compliant
● Rated Voltage：300V
● Application: Internal wiring of appliances and electronic equipment
CABLE DATA:
CONDUCTOR	SIZE:AWG28
	OVER-COATED TINNED STRANDED COPPER 7/0.12±0.005MM
	CONDUCTOR DIAMETER:0.36MM
INSULATION	MATERIAL:PVC GREY INSULATION WITH RED SIDE
	INSULATIONTHICKNESS:NOM:0.26MM,MIN.0.23MM
	OVER DIAMETER:0.9±0.1MM
	RATED:105 ℃ PVC
	RESISTANCE AT 20℃ MAX. 100MΩ/KM
	PITCH: 1.27±0.05MM
ELECTRIC FUNCTION	RATED VOLTAGE	300V
	VOLTAGE-WITHSTAND	2500V/1MINUTE
	TENSILE STRNGTH	BEFORE AGEING:1500PSI	AFTER AGEING:1290PSI (85%)
	ELONGATION	BEFORE AGEING:100%	AFTER AGEING:75% (65%)
