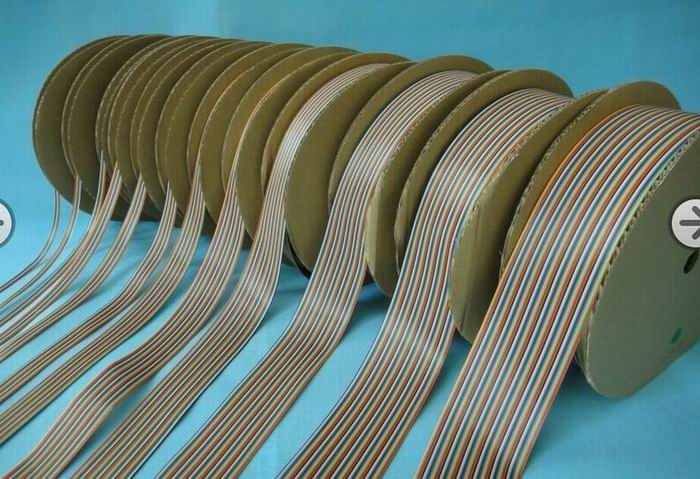

UL2651 AWG28 TS7/0.12 PVC INSULATED 105C 300V FLAT CABLE
更新：2016/10/17 23:32:55 点击：2668
- 产品型号 UL2651-28-7/0.12-1.0
- 产品描述
UL2651 AWG28 TS7/0.12 PVC INSULATED 105C 300V FLAT CABLE PITCH=1.0
产品介绍
| UL2651 PVC INSULATED 105C 300V HOOK UP WIRE | |||||||
| ● Conductor:Tinned Plated Copper | ● Flame resistance: VW-1 or FT1 | ||||||
| ● Insulation: PVC | ● Standard:UL758, UL1581 C22.2 | ||||||
| ● Operating Temperature:105℃ | ● RoHs Compliant | ||||||
| ● Rated Voltage：300V | |||||||
| ● Application: Internal wiring of appliances and electronic equipment | |||||||
| CABLE DATA | |||||||
| CONDUCTOR | SIZE:AWG28 | ||||||
| OVER-COATED TINNED STRANDED COPPER 7/0.12±0.005MM | |||||||
| CONDUCTOR DIAMETER:0.36MM | |||||||
| INSULATION | MATERIAL:PVC INSULATION | ||||||
| INSULATIONTHICKNESS:NOM:0.26MM,MIN.0.21MM | |||||||
| OVER DIAMETER:0.9±0.1MM | |||||||
| RATED:105 ℃ PVC | |||||||
| RESISTANCE AT 20℃ MAX. 100MΩ/KM | |||||||
| PITCH: 1.0±0.15MM | |||||||
| ELECTRIC FUNCTION | RATED VOLTAGE | 300V | |||||
| VOLTAGE-WITHSTAND | 2500V/1MINUTE | ||||||
| TENSILE STRNGTH | BEFORE AGEING:1500PSI | AFTER AGEING:1290PSI | |||||
| ELONGATION | BEFORE AGEING:100% | AFTER AGEING:75% | |||||
