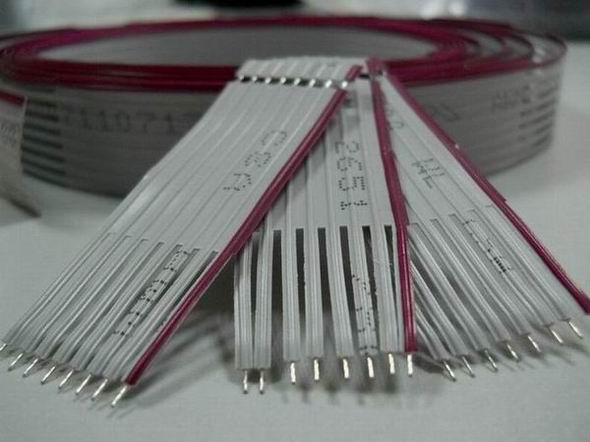

UL2651 AWG28 TS7/0.12 PVC INSULATED 105C 300V FLAT CABLE

更新：2016/10/17 23:33:05 点击：1266

产品介绍

UL2651 PVC INSULATED 105C 300V HOOK UP WIRE
● Conductor:Tinned Plated Copper(TOP COATED)		● Flame resistance: VW-1 or FT1
● Insulation: PVC		● Standard:UL758, UL1581 C22.2
● Operating Temperature:105℃		● RoHs Compliant
● Rated Voltage：300V
● Application: Internal wiring of appliances and electronic equipment

CABLE DATA
CONDUCTOR	SIZE:AWG28
	TOP COATED TINNED COPPER 7/0.12±0.005MM
	RESISTANCE AT 20℃ MAX. 237Ω/KM
	CONDUCTOR DIAMETER:0.36MM
INSULATION	MATERIAL:PVC INSULATION
	INSULATIONTHICKNESS:NOM:0.26MM,MIN.0.18MM
	OVER DIAMETER:0.9±0.1MM
	RATED:105 ℃ PVC
	RESISTANCE AT 20℃ MAX. 0.75MΩ/KM
	COLOR:GREY WITH RED SIDE FLAT CABLE
	PH=2.54±0.15MM
ELECTRIC FUNCTION	RATED VOLTAGE	300V
	VOLTAGE-WITHSTAND	2500V/1MINUTE
	TENSILE STRNGTH	BEFORE AGEING:1500PSI	AFTER AGEING:1290PSI(85%)
	ELONGATION	BEFORE AGEING:100%	AFTER AGEING:75%(65%)
