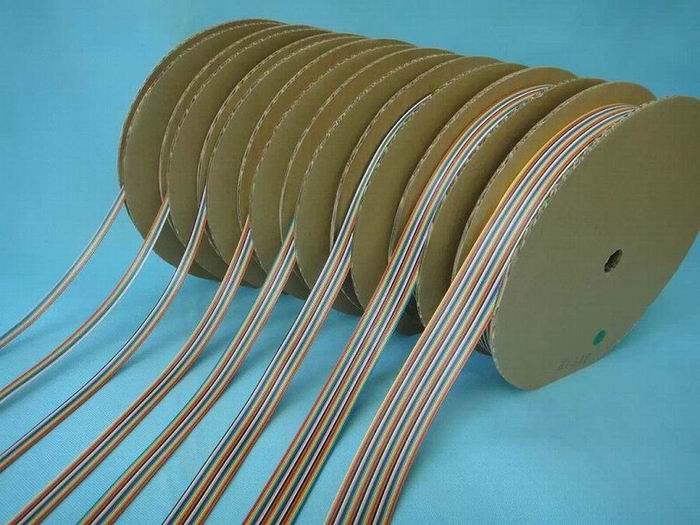

UL2651-26-7/0.16-2.54

更新：2016/10/17 23:32:44 点击：2036

产品介绍

UL2651 PVC INSULATED 105C 300V HOOK UP WIRE
● Conductor:Tinned Plated Copper(TOP COATED)		● Flame resistance: VW-1 or FT1
● Insulation: PVC		● Standard:UL758, UL1581 C22.2
● Operating Temperature:105℃		● RoHs Compliant
● Rated Voltage：300V
● Application: Internal wiring of appliances and electronic equipment

CABLE DATA
CONDUCTOR	SIZE:AWG26
	TOP COATED TINNED COPPER 7/0.16±0.008MM
	RESISTANCE AT 20℃ MAX. 143Ω/KM
	CONDUCTOR DIAMETER:0.48MM
INSULATION	MATERIAL:PVC INSULATION
	INSULATIONTHICKNESS:NOM:0.26MM,MIN.0.21MM
	OVER DIAMETER:1.0±0.1MM
	RATED:105 ℃ PVC
	RESISTANCE AT 20℃ MAX. 100MΩ/KM
	COLOR:GREY FLAT CABLE
	PH=2.54±0.15MM
ELECTRIC FUNCTION	RATED VOLTAGE	300V
	VOLTAGE-WITHSTAND	2500V/1MINUTE
	TENSILE STRNGTH	BEFORE AGEING:1500PSI	AFTER AGEING:1290PSI(85%)
	ELONGATION	BEFORE AGEING:100%	AFTER AGEING:75%(65%)
