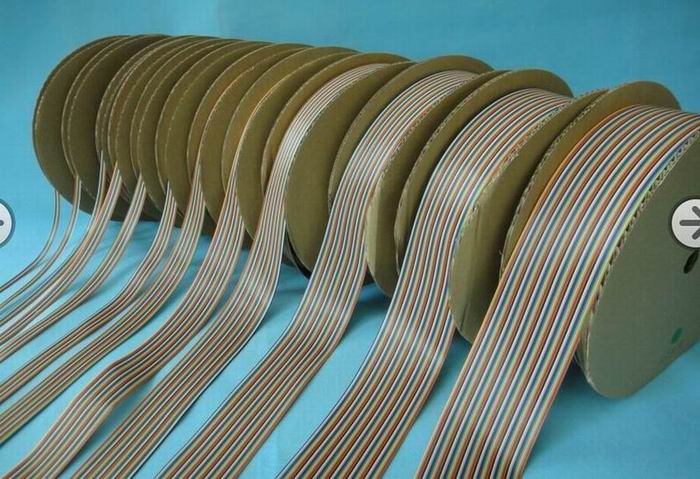

UL2651 AWG26 TS7/0.16 PVC INSULATED 105C 300V HOOK UP WIRE

更新：2016/10/17 23:32:19 点击：2052

产品介绍

UL2651 AWG26 TS7/0.16 PVC INSULATED 105C 300V HOOK UP WIRE
● Conductor:Tinned Plated Copper		● Flame resistance: VW-1 or FT1
● Insulation: PVC		● Standard:UL758, UL1581 C22.2
● Operating Temperature:105℃		● RoHs Compliant
● Rated Voltage：300V
● Application: Internal wiring of appliances and electronic equipment

CABLE DATA：
CONDUCTOR	SIZE:AWG26
	TINNED COPPER 7/0.16±0.008MM
	RESISTANCE AT 20℃ MAX. 149.00Ω/KM
INSULATION	MATERIAL:PVC INSULATION
	INSULATIONTHICKNESS:NOM:0.26MM,MIN.0.23MM
	OVER DIAMETER:1.0±0.1MM
	RATED:105 ℃ PVC
	RESISTANCE AT 20℃ MAX. 100MΩ/KM
	COLOR:GREY
	CORES:2-64P (PH=1.27±0.15MM)
ELECTRIC FUNCTION	RATED VOLTAGE	300V
	VOLTAGE-WITHSTAND	2500V/1MINUTE
	TENSILE STRNGTH	BEFORE AGEING:1500PSI	AFTER AGEING:1290PSI (85%)
	ELONGATION	BEFORE AGEING:100%	AFTER AGEING:75% (65%)
