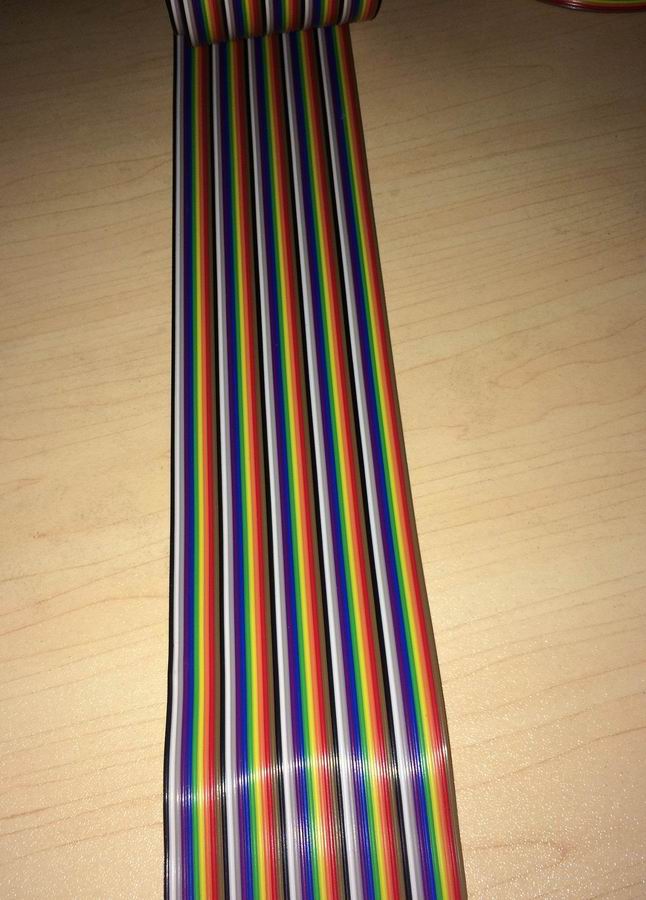

UL 2468 AWG26 FCC

更新：2016/10/18 11:43:40 点击：2695

产品介绍

UL 2468 AWG26 WH/RD












CABLE DATA
CONDUCTOR		SIZE:AWG26
		TINNED COPPER 7/0.16±0.008MM
		RESISTANCE AT 20℃ MAX. 149.00Ω/KM
INSULATION		MATERIAL:PVC INSULATION
		INSULATIONTHICKNESS:NOM:0.45MM,MIN.0.36MM
		OVER DIAMETER:(1.5±0.1)*(7.5±0.2)MM
		RATED:80 ℃ 300V
		COLOR: WHITE WITH RED MARKING
		CORES:N P (PH=1.5±0.15MM)
MARKING		AWM 2468 26AWG 80℃ 300V VW-1 E332441 YAOBO C AWM I A 80℃ 300V FT-1
MARKING


ELECTRIC FUNCTION:
● Flame resistance: VW-1 or FT1
● Standard:UL758, UL1581
● Rated Voltage: 300V
● Voltage withstand: 2500V/1Min.
● Insu.Resistance: Min.0.75MΩ/Km AT 20℃
● Tensile Strrngth Before Aging : 1500PSL
● Tensile Strength After Aging: 1290PSL (85%)
● Elongation Before Aging: 100% Min.
● Elongation After Aging: 65% Min.(136℃*168H)
