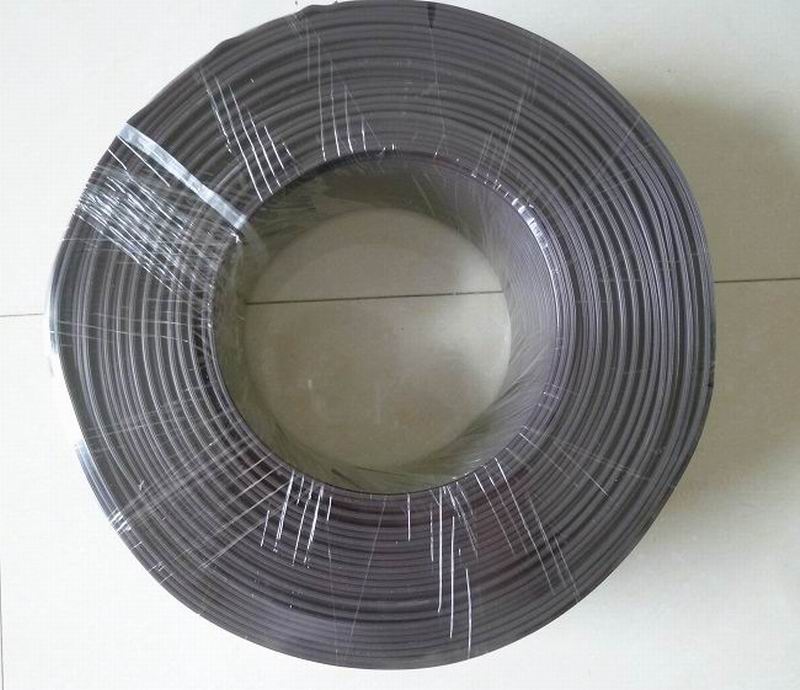

UL2464 CABLE 4C AWG18 GREY

CABLE DATA
● Conductor:Tinned Plated Copper				● Rated Voltage: 300V DC
● Operating Temperature: 80℃				● RoHs Compliant
● Flame resistance: VW-1 or FT1				● Standard: UL Subject 758

Cores:
● Conductor Size: AWG18 TC41/0.16±0.008MM(Tinned Copper)				● Insulation Material : PVC
● Insulation Thickness: 0.35MM				● Insulation OD: 2.0 ± 0.1MM
● Color: Red, Black,White,Yellow				● No marking

Drain/Shield:
● Drain wire: TC41/0.16±0.008MM(TC)				● Drain wire twisted with 4 cores together.
● Shield: AL-Foiled

Jacket:
● Material: PVC 80℃				● Color: Grey (RAL 7004)
● Wall Thickness (NOM): 0.76MM				● Finish OD: 6.5 ± 0.2MM
