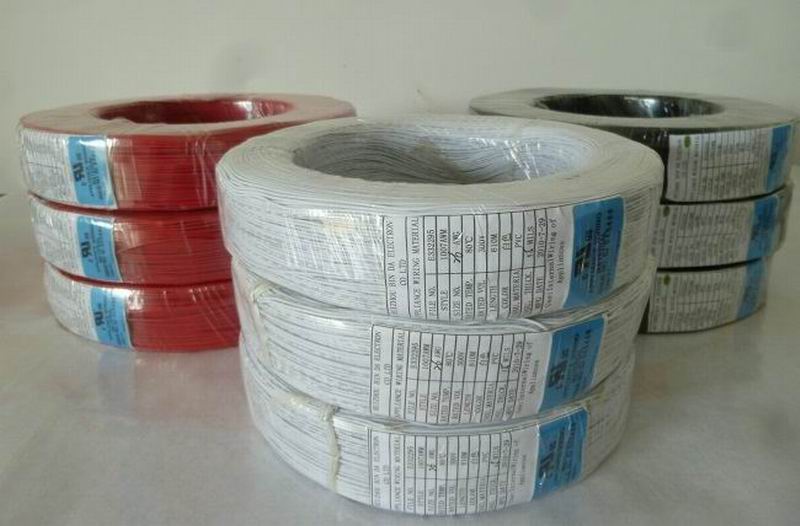

UL Style 1429 Hook-up Wire
更新：2016/10/17 18:52:19 点击：1977
- 产品型号 UL 1429
- 产品描述
UL Style 1429 Hook-up Wire
产品介绍
| UL Style 1429 Hook-up Wire | |||||||
| ● Conductor:TC or BC | ● Insulation: XL-PVC | ||||||
| ● Operating Temperature: 80℃ | ● Rated Voltage：150V DC | ||||||
| ● Flame resistance: VW-1 or FT1 | ● RoHs Compliant | ||||||
| ● Standard:UL758, UL1581 | |||||||
| Gauge |
No.of Strands |
Diameter of Strands MM |
Diameter of Conductor |
Resistance at 20℃ Ω/KM |
Insulatio Thickness MM |
Overall Diameter MM |
|
| Normal | Tolerance | ||||||
| 16 | 26 | 0.254 | 1.50 | 14.60 | 0.25 | 2.00 | ±0.10 |
| 18 | 16 | 0.254 | 1.15 | 23.20 | 0.25 | 1.65 | ±0.10 |
| 20 | 21 | 0.18 | 0.95 | 36.70 | 0.25 | 1.45 | ±0.10 |
| 22 | 17 | 0.16 | 0.76 | 59.40 | 0.25 | 1.26 | ±0.10 |
| 24 | 11 | 0.16 | 0.61 | 94.20 | 0.25 | 1.10 | ±0.10 |
| 26 | 7 | 0.16 | 0.48 | 150.00 | 0.25 | 0.98 | ±0.10 |
| 28 | 7 | 0.127 | 0.38 | 239.00 | 0.25 | 0.88 | ±0.10 |
| 30 | 7 | 0.10 | 0.30 | 381.00 | 0.25 | 0.80 | ±0.10 |
