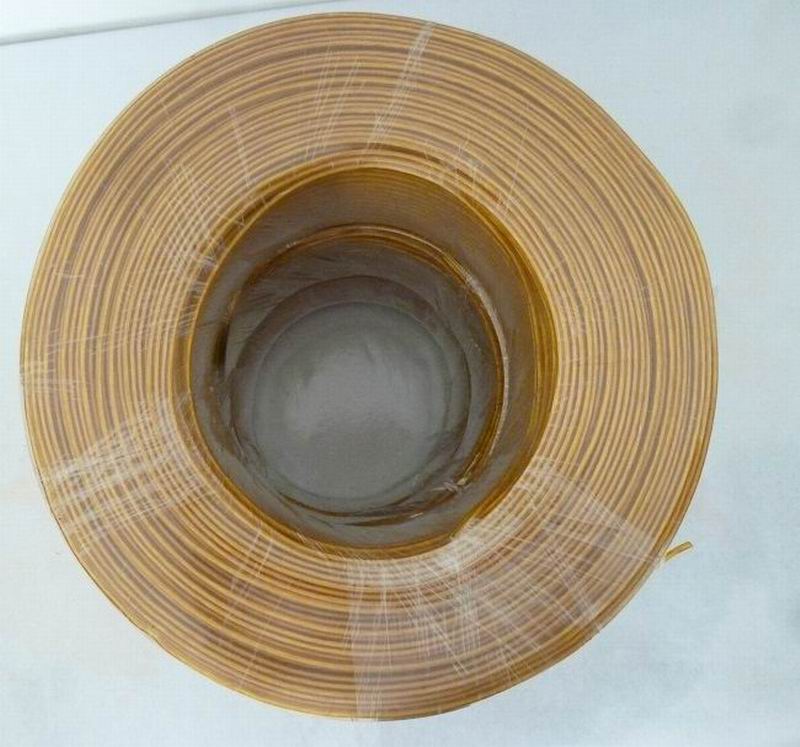

UL Style 1283 Hook-up Wire
更新：2016/10/17 18:50:14 点击：2453
- 产品型号 UL 1283
- 产品描述
UL Style 1283 Hook-up Wire
产品介绍
| UL Style 1283 Hook-up Wire | |||||||
| ● Conductor:Tinned Plated/Bare Copper | ● Insulation: PVC | ||||||
| ● Operating Temperature: 105℃ | ● Rated Voltage：600V DC | ||||||
| ● Flame resistance: VW-1 or FT1 | ● RoHs Compliant | ||||||
| ● Standard:UL758, UL1581 | |||||||
| Gauge |
No.of Strands |
Diameter of Strands MM |
Diameter of Conductor |
Resistance at 20℃ Ω/KM |
Insulatio Thickness MM |
Overall Diameter MM |
|
| Normal | Tolerance | ||||||
| 2 | 7/95 | 0.254 | 8.58 | 0.555 | 1.52 | 11.62 | ±0.20 |
| 3 | 7/28 | 0.404 | 7.41 | 0.700 | 1.52 | 10.45 | ±0.20 |
| 4 | 7/60 | 0.254 | 6.82 | 0.882 | 1.52 | 9.86 | ±0.20 |
| 6 | 7/38 | 0.254 | 5.41 | 1.403 | 1.52 | 8.45 | ±0.20 |
| 8 | 168 | 0.254 | 3.80 | 2.230 | 1.52 | 6.85 | ±0.15 |
